CPA TYPE CHEMICAL PUMP
 |
|
CPA TYPE
|
- Specially designed cooling for shaft seal. The built-in Teflon bellow seal features automatic cooling performance, no circulated cooling hose required.
- Vacuum self priming design. Built with a choke valve fully prevents liquid back-flow in the pump.
- Superior corrosion-resistant performance. Material-CFRPP, FRPP, PVDF (Teflon.)
- Strong acid and alkaline resistant.
SPECIFICATION:
|
Type
|
Model
|
Performance Chart
|
Inlet/Outlet(mm)
|
Motor Power(HP)
|
MAX Manometric Head(m)
50HZ/60HZ |
MAX Flow Rate(L/min)
50HZ/60HZ |
|
CPA
|
40012L
|
A
|
40/40
|
1
|
14/16
|
230/240
|
|
CPA
|
40014L
|
B
|
40/40
|
1
|
7/9
|
220/270
|
|
CPA
|
40022L
|
C
|
40/40
|
2
|
16/18
|
270/300
|
|
CPA
|
40022H
|
D
|
40/40
|
2
|
19/22
|
290/330
|
|
CPA
|
50032L
|
E
|
50/50
|
3
|
17/21
|
400/430
|
|
CPA
|
50032H
|
F
|
50/50
|
3
|
23/29
|
390/480
|
|
CPA
|
50052H
|
G
|
50/50
|
5
|
26/34
|
460/600
|
|
CPA
|
75052H
|
H
|
75/75
|
5
|
28/35
|
800/860
|

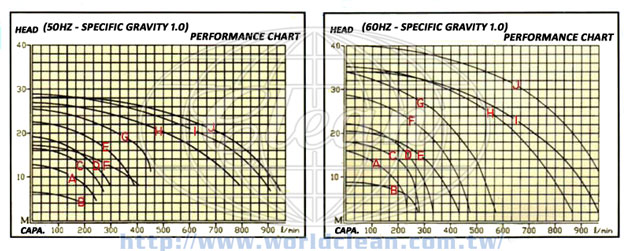

PERFORMANCE CHART:
 |
DIMENSION DRAWING:
 |
 |
 |
|
